Cat6 vs Cat6a vs Fiber: Which Does Your Office Need?

The Cat6 vs Cat6a vs fiber question comes up on almost every office buildout in Albuquerque, and the short answer is that most offices should run Cat6a to each desk with a fiber backbone tying it together. Cat6 still has a place for short runs and tight budgets. Fiber earns its keep on long distances and heavy traffic between closets or buildings. Below, we break down what each cable does, when it fits, and how to pick without overpaying or boxing yourself in.

Cat6 vs Cat6a vs Fiber: What Sets Them Apart?

The three options split along speed, distance, and how they carry data. Cat6 and Cat6a are copper cables that move data and power together. Fiber uses light through glass, so it travels much farther without losing signal. Here is the quick breakdown:

• Speed and distance: Cat6a runs 10 Gbps across the full 100-meter cable. Cat6 reaches 10 Gbps only to about 55 meters, then falls back to 1 Gbps.
• Frequency: Cat6a operates at 500 MHz, double the 250 MHz of Cat6, which is what holds the higher speed over distance.
• Build: Cat6a is shielded and thicker, so it fights interference and handles heat better. Cat6 is thinner and easier to route.
• Fiber: best for long runs, backbone links, and connecting buildings, with no electrical interference at all.

When Is Cat6 Still the Right Call?

Cat6 still makes sense for short runs, tight budgets, and offices that only need gigabit speeds. If your desks sit close to the network closet and 1 Gbps covers your daily work, Cat6 does the job for less money. Small offices with simple needs often land here.

The catch is headroom. Cat6 gives you less room to grow, so a business that adds higher-resolution cameras, faster Wi-Fi, or more cloud tools can outrun it. When that happens, you are back to pulling new cable through the same walls, which costs far more the second time around.

Is Cat6a Worth the Extra Cost?

For most new commercial installs, Cat6a is worth the modest price bump over Cat6. The material cost sits only slightly higher, and the labor runs a bit more because the cable is thicker and needs clean pathways. In return, you get speed and headroom that pay off for years.

Cat6a covers a lot at once:

• Full 10-gigabit speed to every desk across the whole run
• Power for cameras, access control readers, and phones over one cable
• Support for the faster Wi-Fi access points going into offices today
• Room to grow without pulling new cable through closed walls

Think of it as insurance for the next decade. Cat6a has become the default for new commercial low-voltage cabling in Albuquerque because it covers today's needs and leaves room for tomorrow. When you are opening walls and running cable anyway, the small upgrade now saves a big bill later.

Do You Need Fiber, or Is Cat6a Enough?

You need fiber when runs stretch past 100 meters or when you connect multiple floors or buildings. Fiber uses light instead of electricity, so it carries data over long distances without the signal loss copper runs into. Past that 100-meter mark, fiber becomes the only real option.

Fiber comes in single-mode for long distances and multimode for shorter backbone runs, and the price gap between them has narrowed. For the desk itself, though, Cat6a is usually enough. Most end devices still need copper to pull power over the same cable, so fiber rarely runs straight to a workstation. Certified installers follow the cabling standards set by groups like BICSI and the TIA, and they hand you test reports at project close so you know every run performs.

What About Power Over Ethernet and Your Cameras?

Power over Ethernet, or PoE, lets one cable carry both data and power to a device, and it is a big reason cabling choice matters for your security. Your cameras, access control readers, and Wi-Fi access points often draw their power straight from the network cable. Higher-power devices run warmer, and Cat6a handles that heat better than Cat6 on long runs.

This is where planning the cabling with the security pays off. When the same crew runs your data and your security camera installation in Albuquerque, they size the cable for the cameras from day one. That keeps your footage sharp and your access control steady, with no surprise rewiring after the fact.

The Setup Most Albuquerque Offices Use

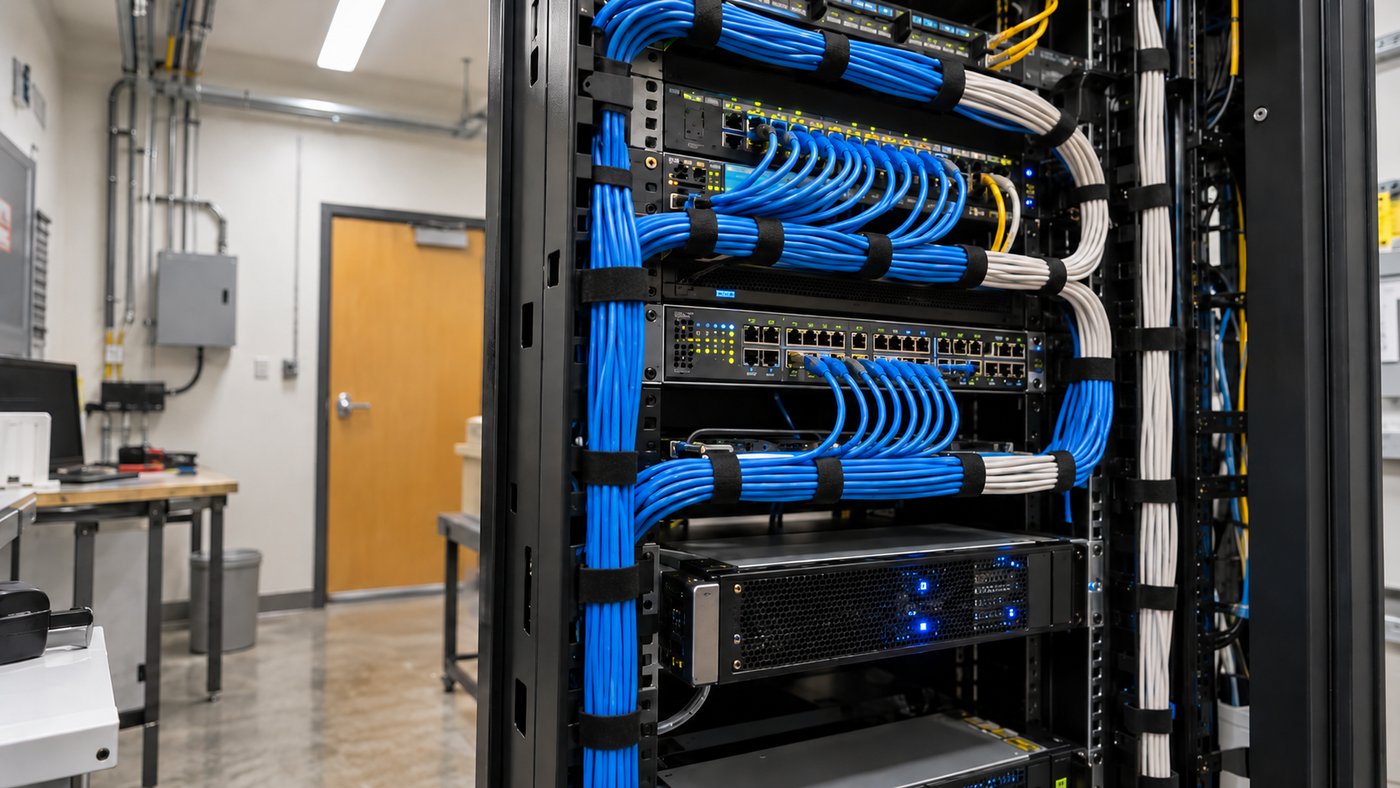

Most Albuquerque offices land on a mix: fiber for the backbone and Cat6a for the horizontal runs to each desk. Fiber ties the network closets and floors together, then Cat6a carries the connection from each closet out to the wall plates. This pattern gives you speed where you need it and saves money where you do not.

Your cabling feeds more than computers. The same runs power your phones, your Wi-Fi, and your security systems. When one team plans the cabling alongside the cameras and access control, everything lines up from the start. Our guide on how your IT team can manage cameras and access control shows how those systems share the same network.

How Long Will Your Network Cabling Last?

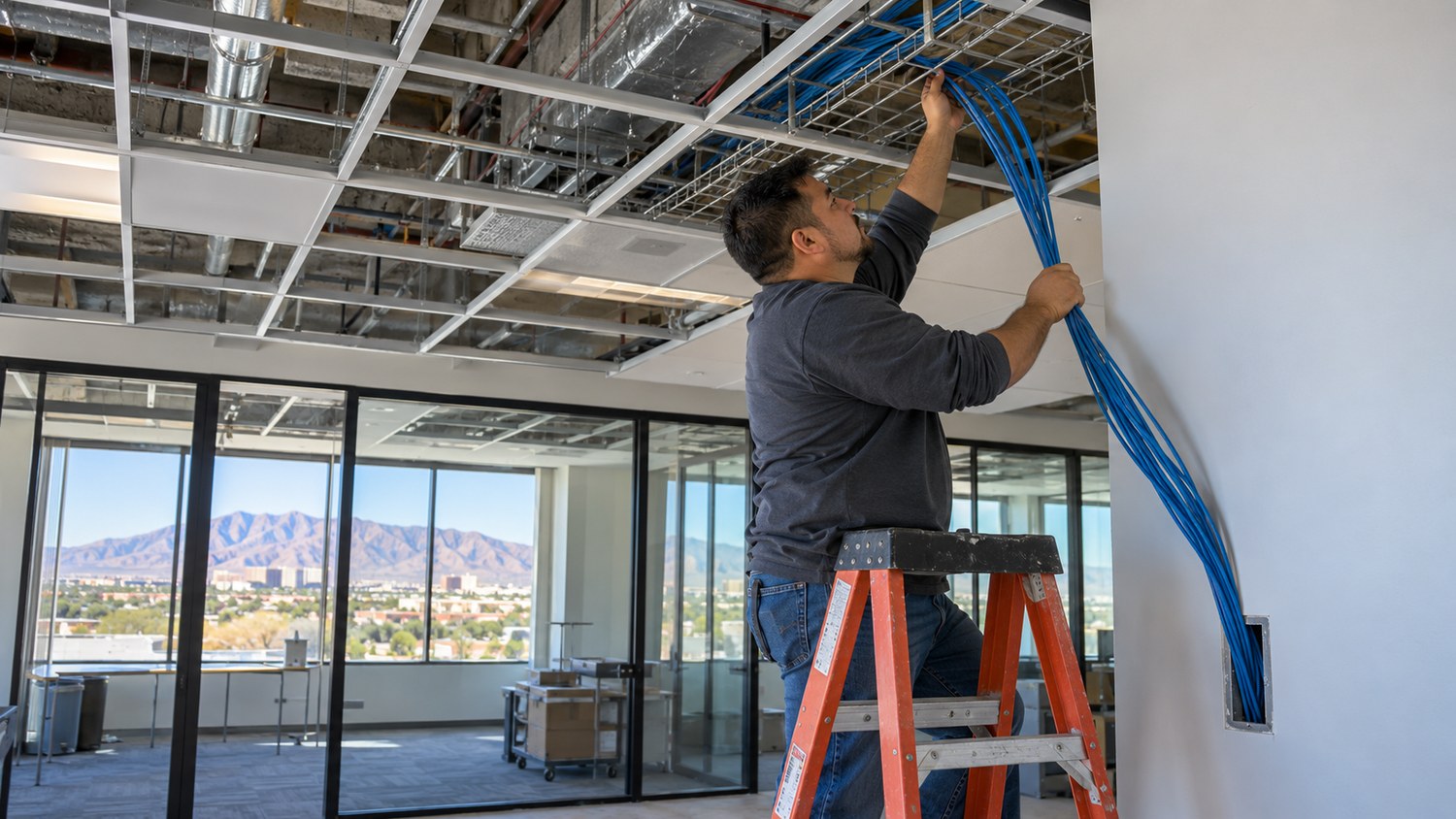

A properly installed cabling system lasts 15 to 25 years, so you make this choice once and live with it for a long time. Walls close after the install, and pulling new cable later means tearing them back open. That is why the cable you pick today should match where your business is going, not only where it sits now.

New buildouts and Wi-Fi upgrades are the moments this matters most. If you want a plain-language primer before you plan, our post on what low-voltage cabling is covers the basics. For the actual spec, match the cable to your building, your budget, and your growth plan.

So Which Cable Should You Choose?

For most Albuquerque businesses, the answer is Cat6a to the desk and fiber for the backbone, with Cat6 saved for short, budget-driven runs. The right mix depends on your building layout, your run lengths, and what your business will need five years out. A quick site walk settles it fast.

Ready to spec your office network the right way the first time? Schedule a free assessment with Wired and our local team will design a cabling plan built for how your business runs today and where it is headed.
